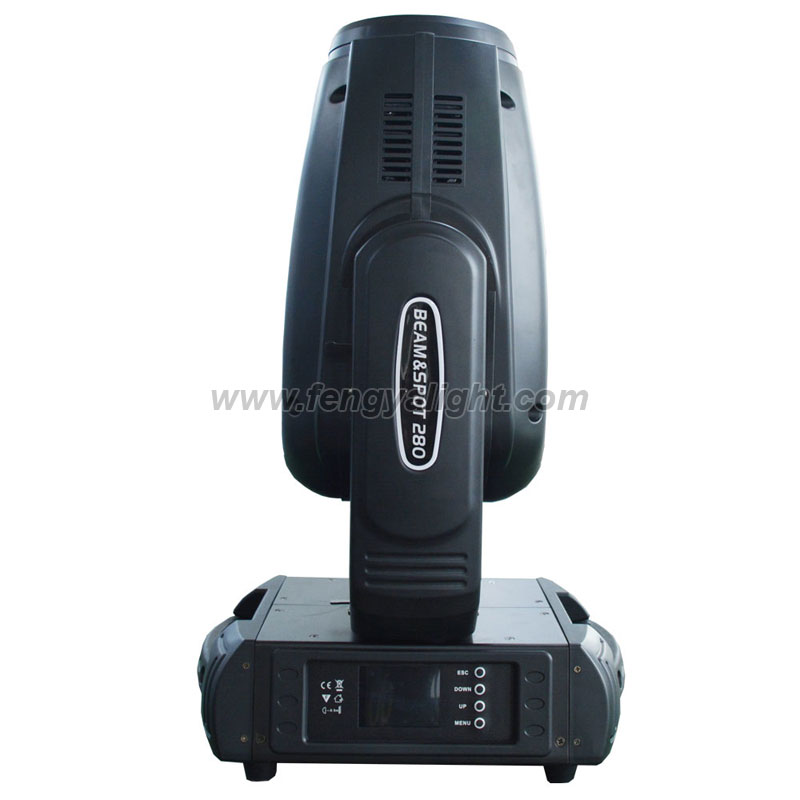

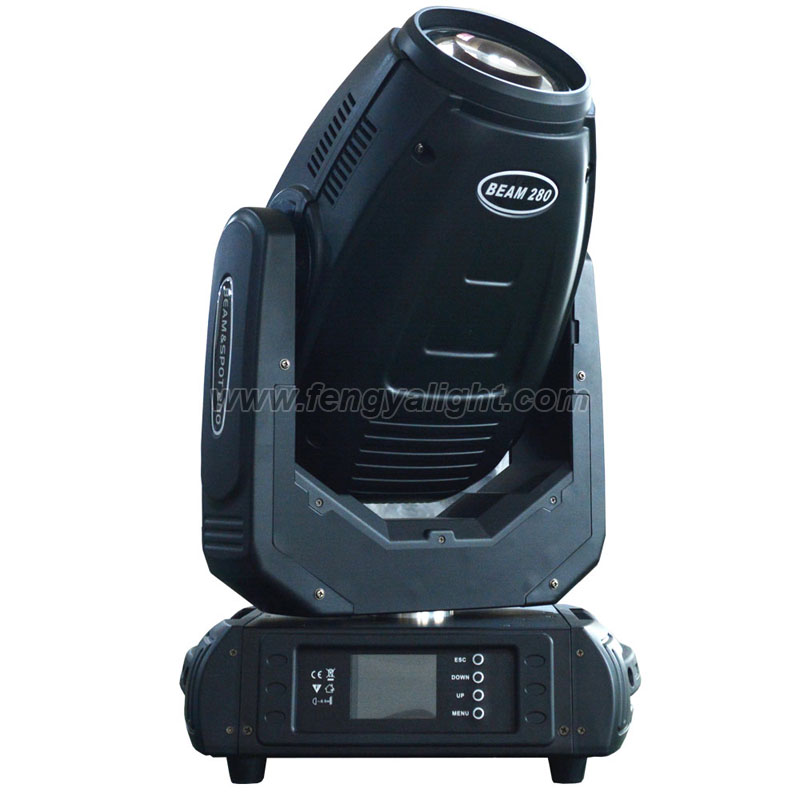

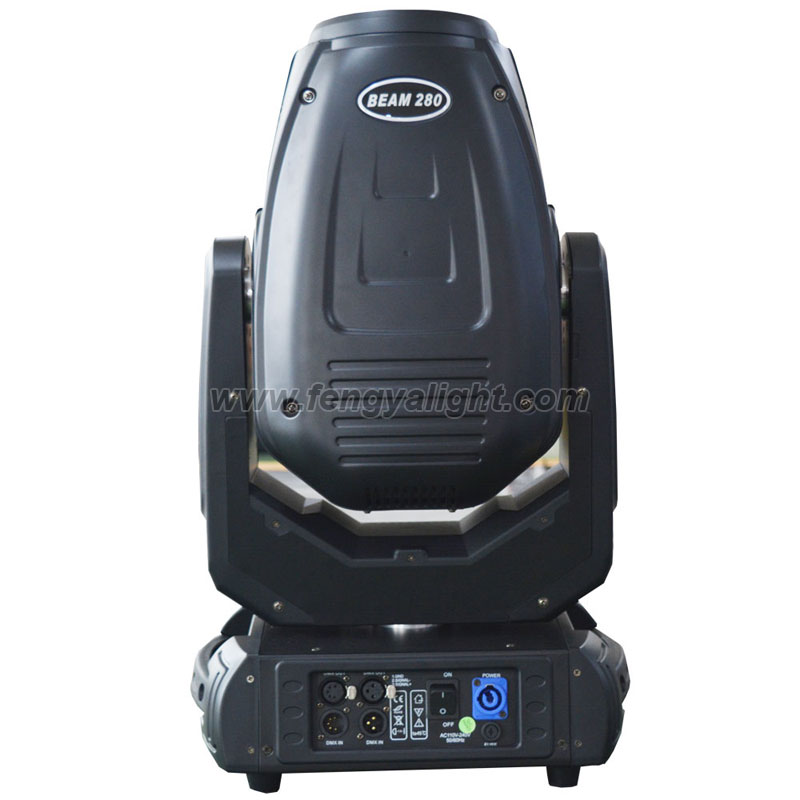

10R 280W beam spot moving head light

10R 280W beam spot moving head light
10R 280W beam spot moving head light
10R 280W beam spot moving head light
10R 280W beam spot moving head light
10R 280W beam spot moving head light
10R 280W beam spot moving head light

10R 280W beam spot moving head light

Model:FY-B280


Specification:

Voltage:AC110W~240V/50-60Hz

Ballast:Electronic Ballast

Lamp:YODN MSD 280W 10R

Average Lifespan: 2200Hrs

Power consumption: 470W

Lens : high precision optical lens

Color wheel: 13 dichroic filters + white

Rotating Gobo Wheel, with 9 bidirectional and indexable

gobos (outside diameter: 15.4 mm, image diameter: 13 mm)

Static Gobo wheel with 14 fixed gobos, at variable rotation

Prism 1: 8-facet circular prism rotating in both directions at different speeds

Prism 2: 6-facet linear prism rotating in both directions at different speeds

Zoom: parallel beam angel 2.5°-20° change

Wash effect : adjustable Wash effects angle

Focus: linear adjustment

Dimmer : 0-100% linear adjustment

Strobe : Double lens strobe (0.5-9 times/ second)

Pan/Tilt : X axis 540° Y axis 270°automatically accurate positioning

Fixation option: Pan/Tilt-lock mechanism

Control mode : Standard DMX512, Automatic and Master/ slave mode

Channel : 16 CHs / 24 CHs

Controller can open the lamp and reset, including delaying function

Dimension: 386 * 365 * 589  mm

Weight : 18KG

Carton box packing:49*43*58.5cm

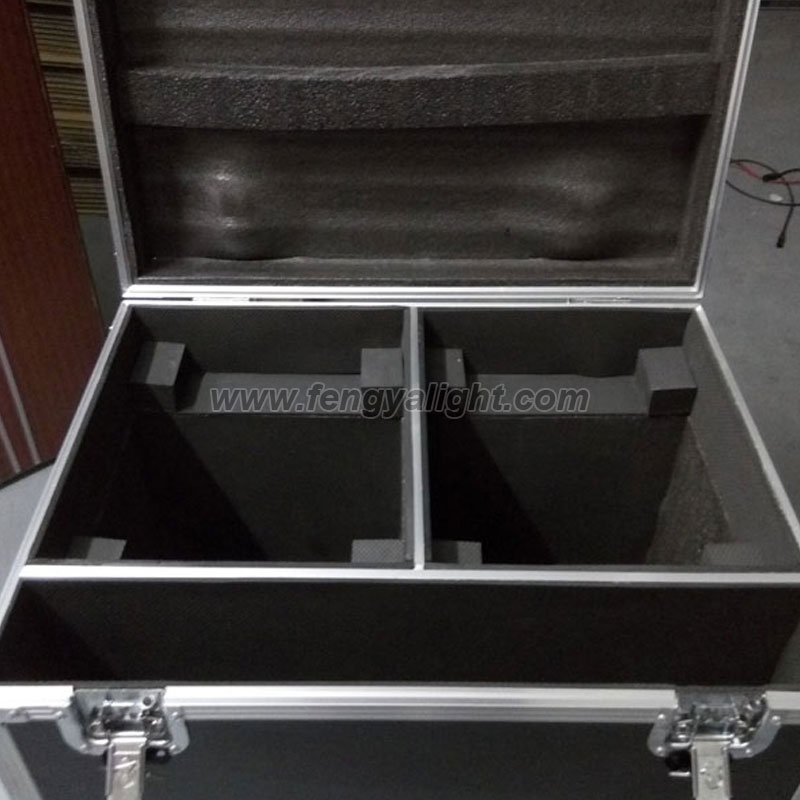

Flight case packing:760*520*820mm(2 in 1),0.32CBM

N.W.:38KGS

G.W.:65KGS






Weight : 18KG

Carton box packing:49*43*58.5cm

Flight case packing:760*520*820mm(2 in 1),0.32CBM

N.W.:38KGS

G.W.:65KGS
